Replacing Your Sportster 883 Exhaust Pipes? Avoid These Common Fitment Mistakes
A rider orders a slip-on that fit a buddy's Sportster 883 perfectly, bolts it on, and finds the O2 sensor bung sitting at the wrong angle. It cannot even reach the harness connector.
That is not bad luck. It is a fitment mistake baked in from the very moment the wrong model year got assumed instead of properly confirmed against the actual bike.
Sportster 883 exhaust pipes look interchangeable from a photo. They are not. The differences hide in details most listings do not spell out clearly.
Most searches for the best exhaust for sportster 883 riders focus entirely on sound and brand reputation. Sportster 883 pipe fitment rarely gets the same attention, even though it is the part that actually determines whether the pipe reaches your bike ready to install or headed straight back for a refund.
Here are the five mistakes that cause most of the returns and refunds on sportster 883 exhaust pipes:
Ignoring the model year catalytic converter split
Guessing on O2 sensor port size instead of confirming it
Assuming every flange design is the same
Overlooking control type clearance
Deleting the crossover pipe without knowing the trade-off
The Quick Answer: What Actually Causes Sportster 883 Exhaust Pipe Fitment Problems
Most sportster 883 exhaust pipe fitment problems trace back to one root cause: a rider assumed their bike matched a general Sportster description instead of confirming their exact model year and control type. The catalytic converter moved location in 2014, the O2 sensor port size changed with it, and flange design varies by year and trim. None of that is visible from a glamour photo of the finished pipe. Confirm your specific year, fuel system and control type against the manufacturer's fitment chart before you order, and most of these mistakes disappear.
Why Sportster 883 Fitment Problems Are So Common
The Harley-Davidson Sportster has run in some form since 1957. The 883 specifically has stayed in production through carbureted and fuel injected generations, rigid mount and rubber mount frames, and multiple control layouts.
That long run is exactly why fitment gets confusing. A part that bolted on a 2005 883 does not automatically bolt on a 2015 883, even though both wear the same model name and displacement badge.
Harley also revised the frame itself partway through the model's life. Rigid mount engines ran through 2003, and rubber mount frames took over from 2004 onward with different geometry around the motor. A header pipe shaped for one mounting style can sit at a slightly different angle on the other, even when the flange bolt pattern lines up fine.
Sportster parts also get cross-listed under Dyna, Softail and even Touring categories in some marketplaces. A handful of universal drag pipe kits genuinely do span multiple families with minor adapters and bracket changes. That cross-listing makes it easy to assume more compatibility than actually exists.
None of this means Sportster 883 fitment is unusually hard to get right. It just means the checklist matters more than the brand name on the box, since two visually identical pipes can be engineered for two completely different model years. A few minutes spent confirming specifications saves considerably more time than a return shipment and a second wait for the correct part.
The good news is that every one of these mistakes is preventable with the same five-point check, run before you click purchase rather than after the box arrives.
5 Fitment Mistakes to Avoid With Sportster 883 Exhaust Pipes
Work through these in order. The first two mistakes account for the majority of return requests on sportster 883 exhaust pipes, so start there even if you are in a hurry.
Mistake 1: Ignoring the Model Year Catalytic Converter Split
Sportster exhaust systems built from 2004 through 2013 are broadly interchangeable with each other. On those years, the catalytic converter sits inside the mufflers. A connecting pipe links the two mufflers together underneath the engine.
Starting with the 2014 model year, Harley added ABS across the Sportster line and restructured the exhaust to match. The catalytic converter moved into the header pipes. The connecting pipe now links the header pipes instead of the mufflers.
This is not a cosmetic detail. It changes where the heaviest, hottest component of the system physically sits, which affects both how the pipe routes and where heat radiates toward nearby components like the oil lines.
A harley sportster 883 exhaust pipes kit designed for the older layout will not correctly route on a 2014-plus bike, even though the mounting bolts might technically line up.
Mistake 2: Guessing on O2 Sensor Port Size
Fuel injected Sportster 883s built through roughly 2013 use an 18mm oxygen sensor port. Starting around the 2014 model year, Harley switched to a 12mm port on most models.
A bushing adapter can step a bung down from 18mm to 12mm in a pinch, but that is a workaround, not a proper fitment. Systems built specifically for your model year already have the correct port size welded in the right location.
Guess wrong on this one and the sensor either will not thread in at all, or it threads in at an angle that stresses the wiring harness every time the engine moves on its mounts.
There is a second, quieter cost to guessing wrong here too. An O2 sensor that reads from an odd angle inside the bung can report a slightly inaccurate mixture, which nudges your fuel trims off target even when the check engine light never comes on. Riders sometimes chase a rough idle for weeks before tracing it back to a sensor sitting a few degrees off its intended position.
Mistake 3: Assuming Every Flange Is the Same
Stock Sportster exhaust flanges use a snap ring and spring clip system to hold the head pipe against the cylinder head. It works, but the snap rings are a common failure point, and they are fiddly to compress during installation.
Many aftermarket sportster 883 exhaust system kits replace this with an integrated flange design that bolts on directly, eliminating the snap ring entirely.
Neither design is wrong, but mixing an old snap ring head pipe with a system expecting an integrated flange creates a leak that no amount of gasket sealant fully solves. If your bike has already had aftermarket work done to it, confirm which flange type is currently installed before assuming it matches the factory default for your model year.
Mistake 4: Overlooking Control Type Clearance
Forward controls, mid controls and rearsets each place the footpeg in a different spot relative to the engine, and the header pipe has to route around whichever one your bike has.
A pipe that clears mid controls comfortably can rub or fully block a forward control mount. Some drag pipe kits explicitly state they do not clear certain mid control setups, so read the fitment notes fully rather than skimming the headline compatibility claim.
Measure the distance from your existing head pipe to your control mount before ordering, and compare it against the manufacturer's published clearance dimension if one is listed.
This step takes on extra importance if you have already swapped controls once before on this particular motorcycle. A bike that left the factory with mid controls but now runs aftermarket forward controls needs the forward control clearance dimension, not whatever the model year's factory default happened to be when it rolled off the line.
Mistake 5: Deleting the Crossover Pipe Without Knowing the Trade-Off
The factory crossover pipe connects the two head pipes below the engine, and it exists for a real reason. It improves low-rpm cylinder filling through exhaust scavenging, which adds bottom-end torque you feel most when pulling away from a stop.
Some riders cut the crossover for a cleaner look underneath the engine. That is a legitimate cosmetic choice, but it comes with a genuine, if modest, torque loss in the low and midrange that a dyno can measure even when the seat-of-the-pants feel is hard to notice.
If you ride mostly around town in stop and go traffic, that low-end pull matters more than it does for a rider who spends most of their time at a steady highway cruise. Weigh the look against how you actually ride before cutting anything you cannot easily weld back in.
Recommended Sportster 883 Exhaust Pipes from Kinetic Motorcycles
Every system below is TIG-welded in Houston from 304 stainless steel, ceramic-coated inside, with O2 bungs and an integrated flange kit that skips the fragile OEM snap-ring. Confirm your year and control type before ordering.

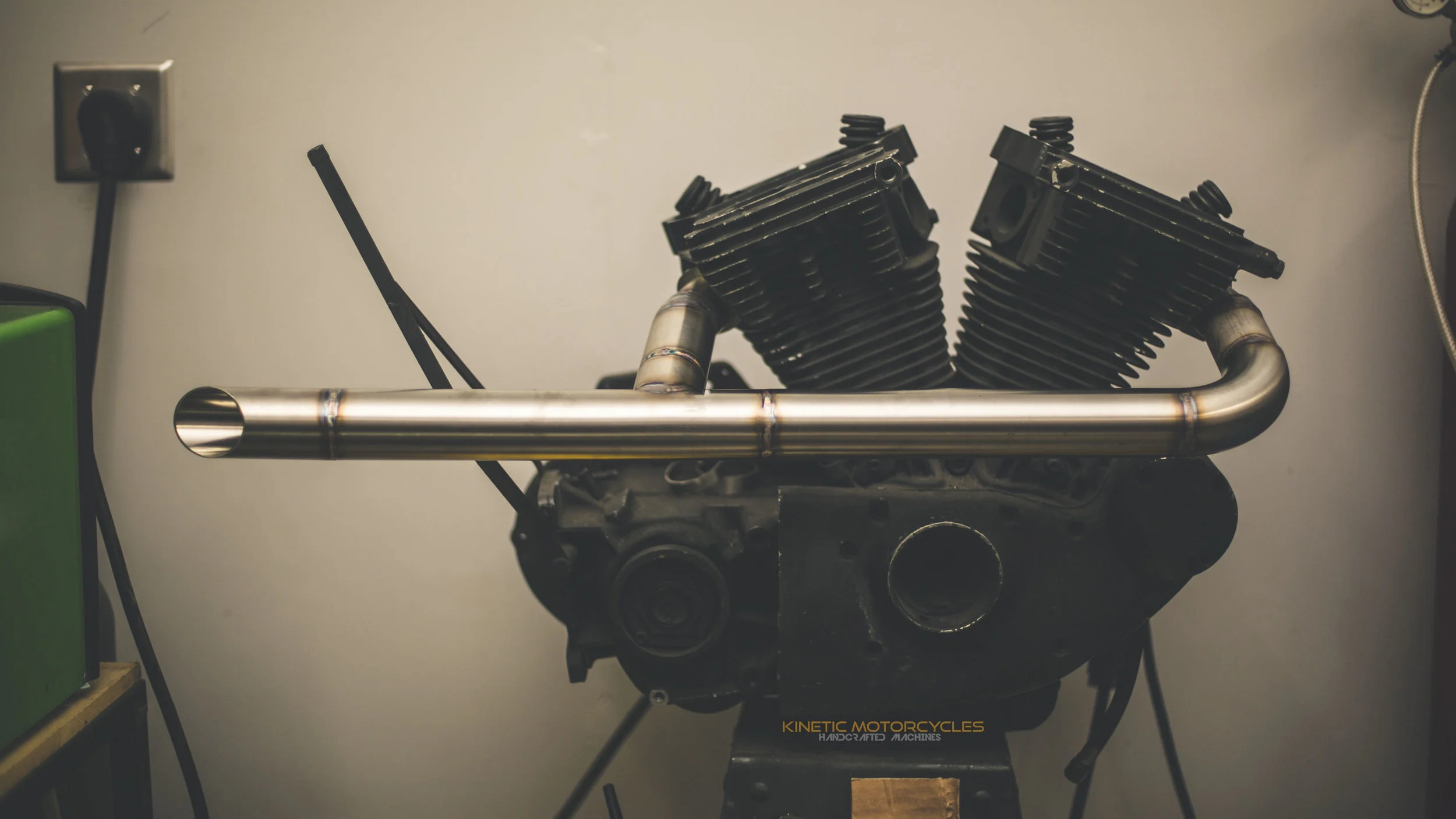

1. Flatline 2-Into-1 Exhaust - $500.00
The most affordable entry, a clean 0-degree linear 2-into-1 with an optional internal baffle. Fits 1986 to 2022-plus Sportsters and both fuel systems, making it a safe first set of sportster 883 exhaust pipes.
2. 21 Sidewinder 2-Into-1 Exhaust - $995.00
A refined 2-into-1 merge collector with a resonated muffler for a deep, aggressive note. It clears forward, mid, and rearset controls, so it suits most sportster 883 exhaust upgrade plans.

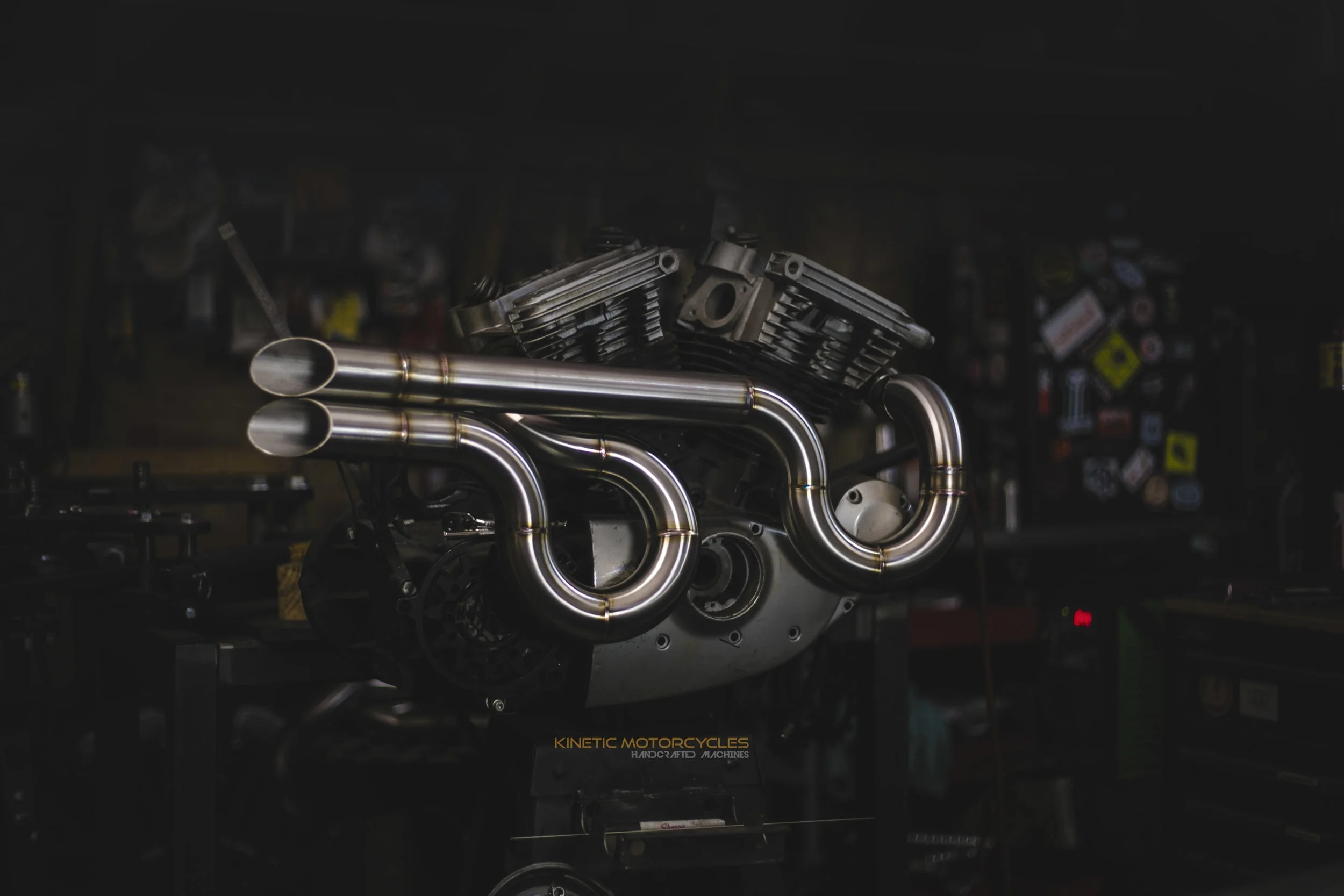

3. 540 Laterals Exhaust - $750.00
Flat-track-inspired lateral routing that tucks tight for cornering clearance. A bold, segmented look with tip and O2 options, ideal if scraping staggered duals in corners is your complaint.
4. XLRS Rearset Exhaust - $800.00
Built specifically for rearset foot controls, a common fitment mismatch. A stepped 2-into-1 collector expands to a 2.5-inch outlet, so rearset riders finally get a properly clearing sportster 883 exhaust system.

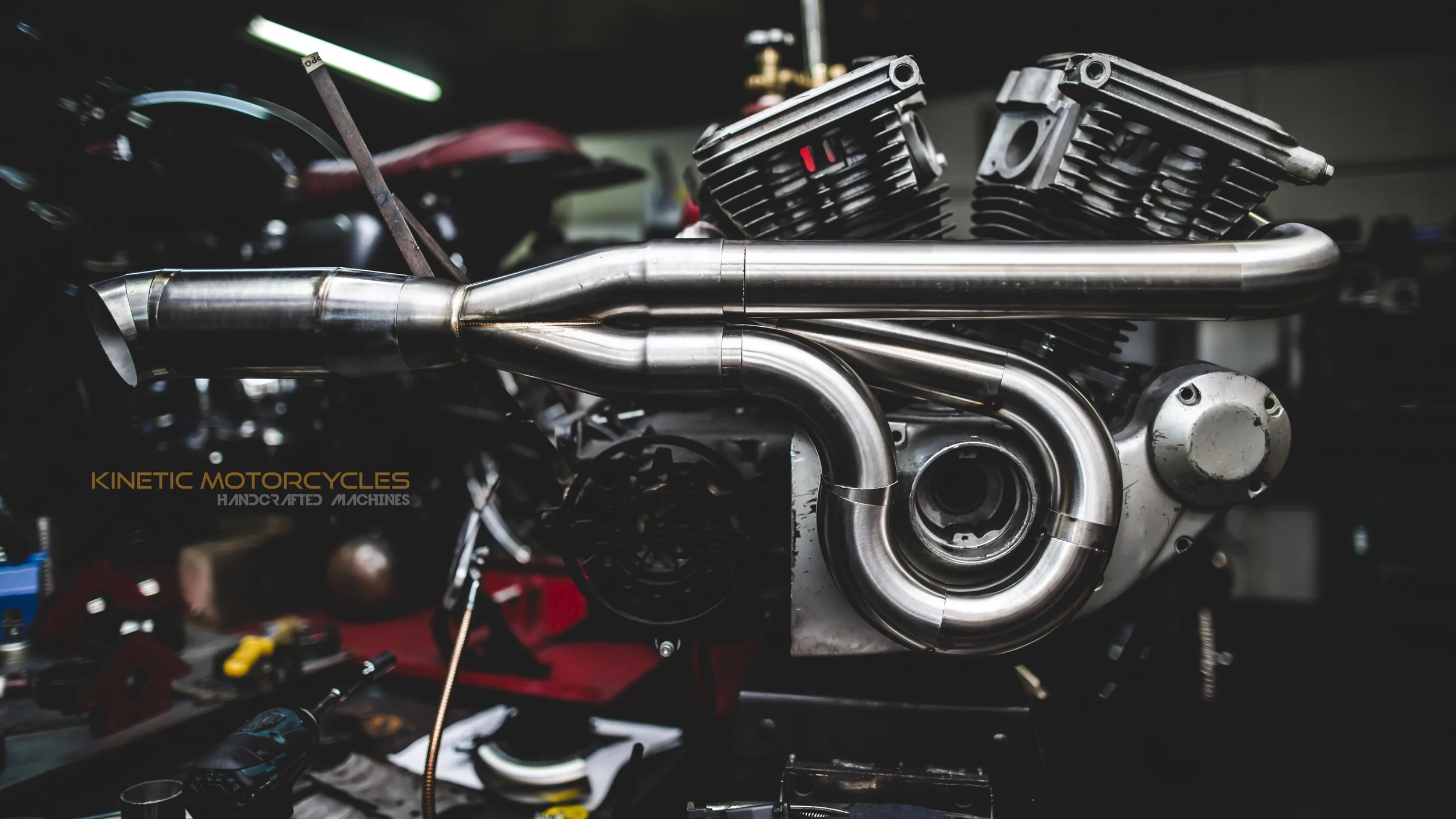

5. 360 Flatline 2-Into-1 Exhaust - $995.00
A wrap-around 360-degree lower pipe meeting a lateral top pipe for a level, flowing line. Fiberglass-packed resonated mufflers control sound, and it clears every control type from 1986 to 2022-plus.
What Fitment Research Will Not Fix
Confirming fitment correctly guarantees the pipe bolts on. It does not guarantee the system is street legal in your state, since compliance and physical fitment are two separate checks.
Getting fitment right also will not automatically keep your fuel mixture correct. A full sportster 883 exhaust upgrade that changes backpressure can still call for a tune even when every bolt lines up perfectly.
It will not extend the life of unrelated worn parts either. A correctly fitted exhaust bolted to a bike with a tired head gasket or a leaking pushrod tube still has that underlying problem, and the new pipe just makes the leak easier to spot glowing against fresh metal.
Legal Checks Before You Buy
Any replacement exhaust sold for street use must carry a permanent compliance label under 40 CFR Part 205, Subpart E, identifying the manufacturer and the standard it meets.
Watch for one specific phrase on drag pipe and straight pipe listings:
Language stating the product is not legal for sale or use in California on pollution controlled vehicles
A closed course competition only disclaimer, which means the system is not street legal anywhere
Confirmation of your state's specific noise inspection requirement, since it can be stricter than federal rules
These compliance details sit separately from every fitment question above them. A pipe can fit your exact 2016 Sportster 883 perfectly and still carry a closed course only label that makes it illegal to ride on a public street, so check both boxes independently rather than assuming one confirms the other.
Final Thoughts
Model year and control type decide whether sportster 883 exhaust pipes fit, not the brand name on the box or how good the sound clip is.
That verdict changes only for riders building a dedicated closed course bike, where physical fitment is the only remaining variable and street legality no longer applies.
Confirm your exact year, fuel system, flange type and control clearance against the manufacturer's chart before you buy, and the fitment problems in this article simply will not happen to you.
Five minutes with a tape measure and your bike's title paperwork costs far less than paying a restocking fee on a system that never should have shipped to your address in the first place.
Ready to Replace Your Pipes? Explore Kinetic Motorcycles
Kinetic Motorcycles builds Sportster exhaust systems in-house in Houston, Texas, engineered to the correct O2 port size and flange type for the model years each system is sold for.
Every listing states the exact model years and control types a given system supports, so you can confirm fitment against your own bike before you order rather than hoping for the best after it arrives.
Browse Kinetic's full Harley Davidson Sportster exhaust catalog filtered by your model year and control type, and request a fitment check on your exact bike so the pipes that arrive are the pipes that bolt on the first time.
Frequently Asked Questions
-
Sportster 883 exhaust systems from 2004 to 2013 share the same catalytic converter and connecting-pipe layout, so they interchange. From 2014, ABS moved the converter into the headers, so always confirm your model year against the fitment chart.
-
Usually yes. Fuel-injected 883s through 2013 use an 18mm O2 port; 2014-plus models use 12mm. A bushing adapter works in a pinch, but a sportster 883 exhaust system built for your year already has the correct bung.
-
Generally no. Dyna and Softail frames route the exhaust differently around different mounts and controls. Only a few universal drag pipe kits span families with brackets, so check the listing's specific harley sportster 883 exhaust pipes fitment before buying.
-
Yes, modestly. The crossover pipe improves low-rpm scavenging, adding bottom-end torque. Removing it for a cleaner look costs measurable low and midrange pull, so street riders who value stop-and-go response should usually keep it in place.
-
A snap-ring flange holds the head pipe with a spring clip and can fatigue over time. An integrated flange kit bolts on directly, speeding installation. They are not interchangeable, so confirm which your sportster 883 exhaust uses.
-
Yes. Forward controls push the peg mount where many collectors route, while mid controls clear more designs. Sportster 883 pipe fitment depends on your control type, so measure from pipe to mount before ordering rather than assuming.
-
Often not. Many universal drag pipes state they are not legal for sale or use in California on pollution-controlled vehicles, and closed-course-only systems are not street legal anywhere. Always read the specific listing before buying sportster 883 exhaust pipes.
-
Check the throttle body. A round housing with no float bowl means fuel injection; a visible float bowl means a carburetor. Harley switched the 883 to EFI in 2007, so O2 sensor and bung questions apply to 2007-plus models.
